Λεπτομέρειες:
|
Features: | High Strength, Corrosion Resistance, Acid and Alkali Resistance, Heat Resistance, Wear Resistance, Easy to Clean, Long Service Life, Good Filtration Performance | Product Name: | Short Delivery Time KDL Trade Mark Filter Wire Mesh With Large Stock |
---|---|---|---|
Weave Technique: | Plain Weave, Twill Weave, Dutch Weave, etc | Material: | Low carbon steel, galvanized, stainless steel, Aluminium, Copper, Brass, Monel, Nickel, etc |
Popular Specifictions: | 20mesh, 35mesh, 40mesh, 60mesh, 80mesh, 100mesh, 150mesh, etc | Hole Shape: | Square, Rectagle, etc |
Opening: | 15-1500micron | Applications: | Filtration, Separation, Sieving, Straining, etc |
Επισημαίνω: | KDL trade mark filter wire mesh,short delivery time filter wire mesh,large stock filter wire mesh |
KDL Filter Wire Mesh is a high-quality product designed for various screening and filter applications. With its exceptional weave techniques including Plain Weave, Twill Weave, Dutch Weave, and more, this wire mesh is versatile and reliable for a wide range of uses.
Whether you need to sieve filter wire cloth for particle separation or filter stainless steel mesh for industrial processes, KDL Filter Wire Mesh is the ideal solution. The mesh is meticulously crafted to ensure optimal performance and durability, meeting the highest standards in the industry.

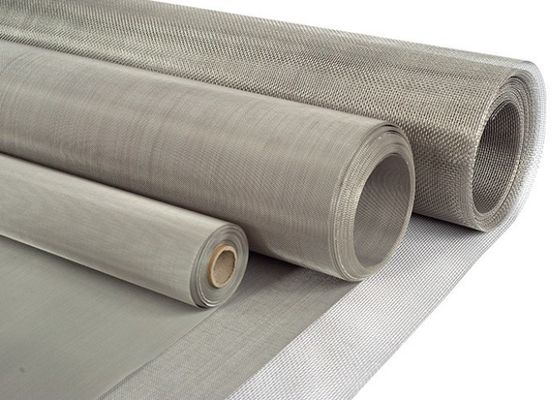

Each roll of KDL Filter Wire Mesh comes in a convenient length ranging from 30 meters to 300 meters, providing flexibility and convenience for different project requirements. The long roll length allows for seamless installation and usage, making it a cost-effective choice for both small-scale and large-scale operations.
For added assurance of quality and compliance, KDL Filter Wire Mesh is certified with ISO9001, ISO14001, ISO 45001, and SGS certifications. These certifications signify that the product meets stringent quality control measures and environmental standards, ensuring that you are using a reliable and eco-friendly wire mesh for your screening and filter needs.
Material options
|
Stainless steel: 304, 304L, 316, 316L;Carbon steel,Copper/Brass/Bronze;Nickel alloys: Monel, Inconel |

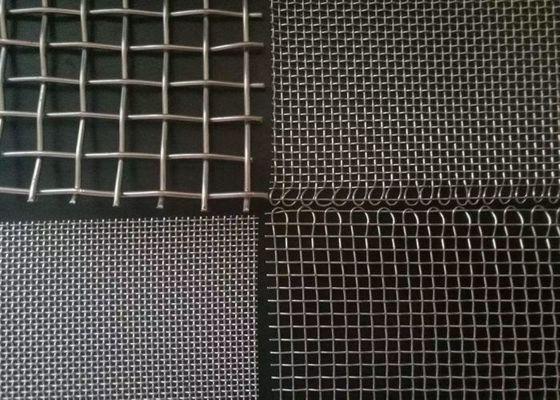

Weave styles | Plain weave,Plain Dutch weave,Dutch weave,Twilled weave |
Aperture and opening
|
Typical openings: 20 µm to several mm Common industrial grades: 25 µm, 45 µm, 100 µm, 200 µm, 500 µm, 1 mm, 2 mm Open area (percentage): roughly 40–60% for plain weave; higher for some Dutch weaves Range: 0.05 mm to 0.8 mm (standard meshes) |
Mechanical/structural
|
Edge treatments: welded frame, reinforced frame, gasket-ready edges Mounting: hooked, bolted, clamped frames; perforated frames; magnetic frames Edge finishing: smooth, burr-free surfaces for cleanability |
Tolerances
|
Wire diameter tolerance: ±0.01–0.05 mm Aperture tolerance: ± ~5–20% depending on weave and fabrication |
Temperature |
304/316 stainless: up to ~550°C (in service, depends on alloy) 316/316L: commonly used up to ~500°C continuous Carbon steel: ~350–500°C with coatings Nickel alloys: >600°C in some cases |
chemical resistance
|
304/316: broad resistance; avoid strong chlorides at high temperature in some configurations Nickel alloys: strong resistance to acids/oxidizing environments |
Applications |
Food & beverage: 304/316, Dutch weave for finer filtration, easy cleanability Pharmaceutical: 316/316L, smooth finishes, validated cleaning Chemical processing: 316/316L, Monel, Hastelloy for aggressive media Mining/abrasive: tungsten carbide-coated, hard alloys Pulp & paper/textiles: larger openings with robust frames |
Product Application Occasions and Scenarios for Kingdelong Filter Wire Mesh:
The Kingdelong Filter Wire Mesh, also known as Filter Stainless Steel Mesh or Filtration Wire Mesh, is a versatile product with a wide range of applications. Its high-quality construction and durability make it suitable for various occasions and scenarios.
Industrial Filtration: The Filter Wire Mesh from Kingdelong is ideal for industrial filtration processes. It can be used in manufacturing plants, refineries, and other industrial settings to separate solids from liquids or gases effectively.
Environmental Protection: With its efficient filtration capabilities, this mesh is perfect for environmental protection applications. It can help remove impurities from water sources, air filtration systems, and pollution control devices.
Food Processing: The Kingdelong Filter Wire Mesh is safe for use in food processing facilities. It can be employed in sieving, straining, and filtering food products to ensure quality and safety standards are met.
Architectural Design: This mesh can also be utilized in architectural design and construction projects. It is commonly used for decorative purposes, sun shading, and even security applications in buildings and structures.
Agricultural Sector: In the agricultural sector, the Filter Wire Mesh can be used for various purposes such as crop protection, animal enclosures, and irrigation systems. Its durability and strength make it a reliable choice for agricultural applications.
Water Treatment: Water treatment plants and facilities can benefit from the Kingdelong Filter Wire Mesh. It can effectively filter out contaminants and impurities from water sources, ensuring clean and safe water for consumption and other uses.
Automotive Industry: The filtration wire mesh is also valuable in the automotive industry. It can be used in vehicle components, such as air filters and oil filters, to maintain the cleanliness and efficiency of automotive systems.
Overall, the Kingdelong Filter Wire Mesh is a versatile and reliable product that can be applied in various industries and scenarios. With its high-quality construction, certification, and production capacity, it is a preferred choice for screening and filtration applications.
